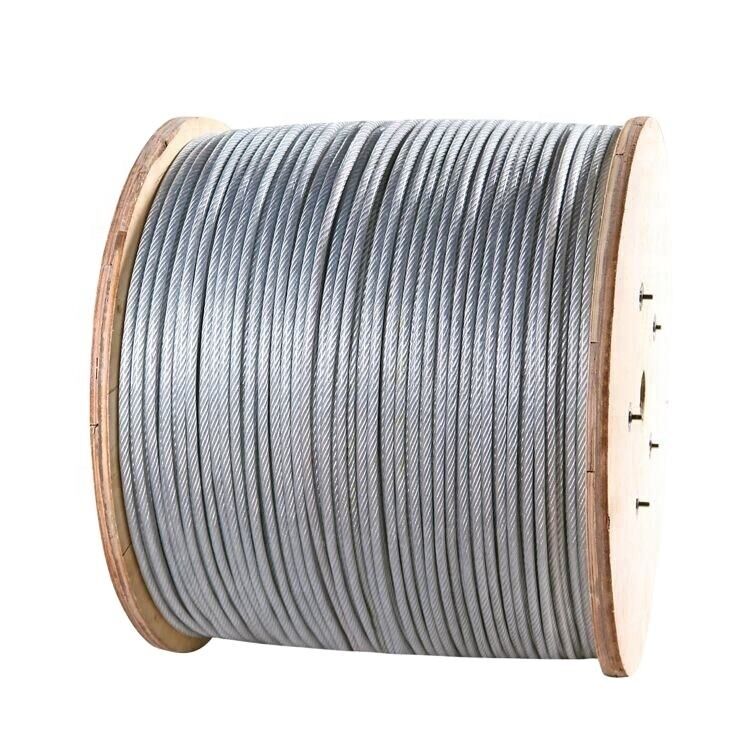

ASTM B549 Quail/AW ACSR Conductor – 133.1 MCM (2/0 AWG) Aluminum-Clad Steel Reinforced for Overhead Lines

Aluminum Conductor Aluminum Clad Steel Reinforced ACSR/AW Conductor 1/0AWG 2/0AWG

Specafication:

Standard:

ACSR Bare conductor meets or exceeds the following specifications:

• IEC 61089 Round wire concentric lay overhead electrical stranded conductors

• AS 3607 Conductors - Bare overhead - Aluminium and aluminium alloy-Steel reinforced

• ASTM B 232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced

• BS EN 50182 Conductors for overhead lines — Round wire concentric lay stranded conductors

• GB 1179 Round wire concentric lay overhead electrical stranded conductors

Note:We also can produce based on other international standards, such as IEC,ASTM etc.

Features:

1. Two Convenient AWG Options – Available as 1/0 AWG and 2/0 AWG, covering typical current ratings for secondary and primary overhead lines.

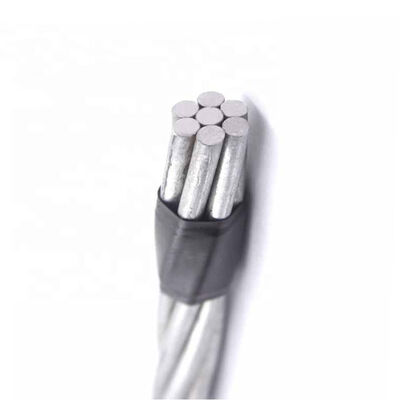

2. Aluminum-Clad Steel Core – The core combines steel strength with an aluminum sheath, preventing rust and ensuring compatibility with aluminum fittings.

3. Low Magnetic Loss Profile – The aluminum cladding reduces core magnetization, resulting in lower alternating current resistance than conventional steel-reinforced designs.

4. Corrosion-Resistant Construction – Withstands salt spray, industrial pollutants, and humid coastal air without deterioration of the reinforcing element.

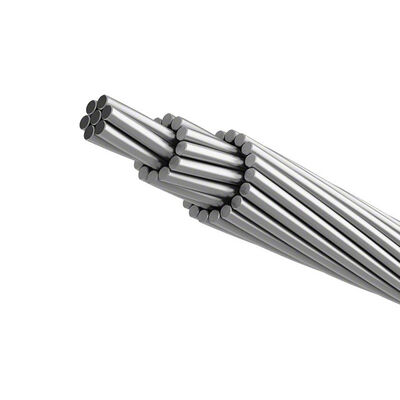

5. Smooth Stranding Surface – The concentric lay of outer wires minimizes wind-induced vibration and simplifies clamping in dead-end and suspension hardware.

Applications:

1. Overhead Service Drops – Connecting distribution poles to residential or small commercial buildings using 1/0 or 2/0 ACSR/AW.

2. Rural Distribution Feeders – Long-span lines across open farmland where both strength and corrosion resistance are required.

3. Industrial Plant Loops – Bare overhead rings supplying power to factory buildings located near chemical or marine environments.

4. Reconductoring Projects – Replacing aging bare copper or galvanized steel core conductors with lighter, longer-lasting ACSR/AW.

5. Temporary Construction Power – Quickly installed overhead lines for building sites, leveraging the conductor's durability against weather exposure.

Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Our Workshop:

Customers Visit:

All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

FAQ:

Q: Are you trading company or manufacturer ?
A: We have our own factory and trading company, our factory have more than 10 years production experience.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.L/C is also available.

Q:Have you ever supplied cables to our country ?

A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
