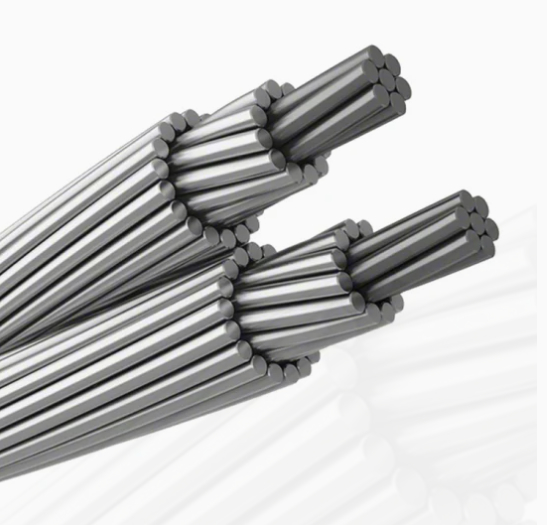

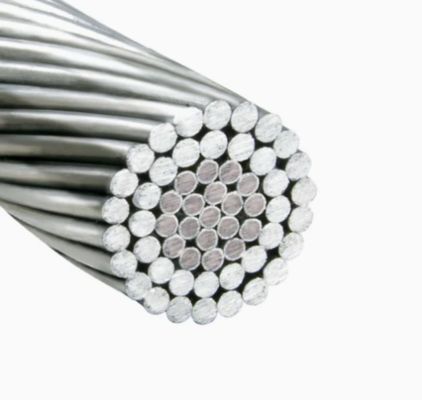

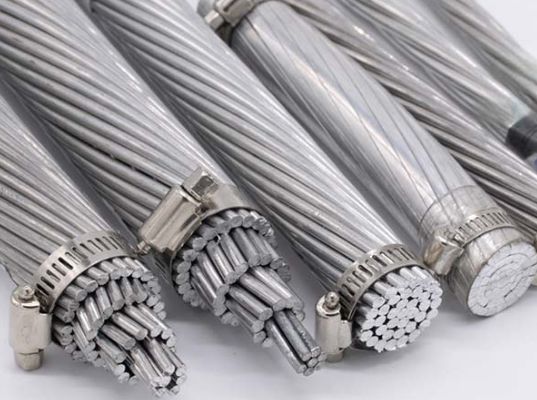

Bare Overhead ACSR Conductor with Steel Reinforcement Aluminum Cable for Industrial & Construction Use

Bare Overhead ACSR Conductor with Steel Reinforcement Aluminum Cable for Industrial & Construction Use

We not only sell wires, but also a complete set of solutions. In the early stage of the project, our engineers can provide you with selection suggestions and recommend the most economical and suitable ACSR model based on your line parameters (such as voltage level, span, meteorological conditions). We can provide detailed product technical parameters, type test reports, and related calculation support (such as sag tension gauges, etc.). During the laying construction phase, we can also provide professional guidance and advice on laying out, helping to avoid scratches and bumps on the surface of the wires and ensure that the lines are put into operation in the best condition.

ACSR Conductor Standards
* ASTM B-232 * BS 215
* CSAC 61089 * AS/NZS 3607
* DIN 48204 * IEC 61089
* GB/T 1179 * JIS C3110

Specifications

The Characteristics of ACSR:

• High strength: The steel core provides excellent tensile strength and is suitable for long-distance overhead lines.
• Good conductivity: The aluminum outer layer ensures good conductivity and reduces energy loss.
• Corrosion resistance: Galvanized steel core and anti-corrosion treated aluminum wire are usually used to extend their service life.
• Lightweight: Compared to pure steel wires, it is lighter in weight and easier to install and maintain.

Applications

ACSR provides a cost-effective solution for power transmission. While the steel core carries virtually no current, the numerous aluminum wires on the outside offer a large cross-sectional area for efficient current flow. By using aluminum for conduction instead of more expensive copper, ACSR delivers outstanding electrical performance at a significantly lower material cost.

Our technical team can optimize the design and customize the production of wires according to your specific needs.

Packing & Delivery:
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.

Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.

According to customers request.

Pay attention to the following steps during installation:

1. Tension control: It is recommended to control the tension at 20% -30% of the rated value to avoid excessive stretching.
2. Sag adjustment: Adjust the sag according to the ambient temperature, generally within the range of 1% -3% span.
3. Connection processing: Use specialized crimping tools, and the recommended crimping pressure is 20-30MPa.
