Lieu d'origine: | Henan |
Nom de marque: | Sanwu |
Certification: | ISO CCC |
Numéro de modèle: | ABC |
Quantité de commande min: | 1000M |
---|---|
Prix: | Negotiable |
Détails d'emballage: | la norme a exporté le tambour ou les bobines en bois |
Délai de livraison: | 1-15days |
Conditions de paiement: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Capacité d'approvisionnement: | 200 tonnes par jour |
Endroit d'original: | Henan, Chine | Conducteur: | 1350 en aluminium |
---|---|---|---|
Isolé: | XLPE/PVC | Type: | Basse tension |
Emballage: | Tambour en bois traité | Application: | Distribution d'énergie |

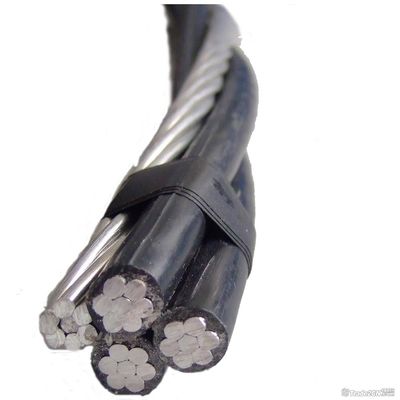

Triplex 1/0 Aluminum Conductor 600V Low Voltage Power Cable
Cable meets or exceeds the following ASTM specifications:
· B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
· B-231 Aluminum Conductors, Concentric-Lay-Stranded.
· B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
· B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
· B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire
3. Conductor:
Phase Conductor | Bare Neutral Messenger |
AAC | AAC |
ACSR | |
Alloy |
4. Service Drop Cable Meets or Exceeds the Following Specifications:
1). Aluminum Wire,1350-H19 for Electrical Purposes;
2). Aluminum Conductors,Concentric-Lay-Stranded;
3). Aluminum Conductor,Concentric-Lay-Stranded,Coated Steel Reinforced(ACSR);
4). Concentric-Lay-Stranded 6201-T81 Conductors;
5). Service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474;
5. Cable's Characteristics:
1). Max.admissible long time operating to conductor:
PVC or PE insulated should not exceed 70℃,XLPE insulated should not exceed 90℃;
2). Installing temperature should not be below -20℃;
3). Admissible bending radius:
When overall-diameter(D)is less than 25mm,it should be not less than 4D;
When overall-diameter(D) is 25mm or more,it should be not less than 6D;
Triplex Service Drop
Code name | AWG or kcmil | Bare Neutral Messenger | Phase Conductor | Weight | Allowable Ampacities(A) | ||||
ACSR | Rated Strength lbs. | AAC | Insul.Thick.Mm | ||||||
No.&Dia.Mm | No.& Dia.Mm | No. & Dia.Mm | kg/km | XLPE | PE | ||||
Paludina | 2*6AWG+1*6AWG | 1*1.68 | 6*1.68 | 1190 | 1*4.11 | 1.14 | 166 | 85 | 70 |
Voluta | 2*6AWG+1*6AWG | 1*1.68 | 6*1.68 | 1190 | 7*1.56 | 1.14 | 170 | 85 | 70 |
Whelk | 2*4AWG+1*4AWG | 1*2.12 | 6*2.12 | 1860 | 1*5.19 | 1.14 | 251 | 115 | 90 |
Periwinkle | 2*4AWG+1*4AWG | 1*2.12 | 6*2.12 | 1860 | 7*1.96 | 1.14 | 255 | 115 | 90 |
Conch | 2*2AWG+1*2AWG | 1*2.67 | 6*2.67 | 2850 | 7*2.47 | 1.14 | 389 | 150 | 120 |
Neritina | 2*1/0AWG+1*1/0AWG | 1*3.37 | 6*3.37 | 4380 | 7*3.12 | 1.52 | 624 | 205 | 160 |
Cenia | 2*1/0AWG+1*1/0AWG | 1*3.37 | 6*3.37 | 4380 | 19*1.89 | 1.52 | 625 | 205 | 160 |
Duplex Service Drop
Code word | AWG or kcmil | Bare Neutral Messenger | Phase Conductor | Weight | Allowable Ampacities(A) | |||
ALLOY | Rated Strength libs. | A AC | Insul.Thick.Mm | |||||
Number & Dia.Mm | Number&Dia.Mm | kg/km | XLPE | PE | ||||
Chihuahua | 1*6AWG+1*30.58 | 7*1.68 | 1110 | 1*4.11 | 1.14 | 98 | 85 | 70 |
Vizsla | 1*6AWG+1*30.58 | 7*1.68 | 1110 | 7*1.56 | 1.14 | 100 | 85 | 70 |
Harrier | 1*4AWG+1*48.69 | 7*2.12 | 1760 | 1*5.19 | 1.14 | 149 | 115 | 90 |
Whippet | 1*4AWG+1*48.69 | 7*2.12 | 1760 | 7*1.96 | 1.14 | 151 | 115 | 90 |
Schnauzer | 1*2AWG+1*77.47 | 7*2.67 | 2800 | 7*2.47 | 1.14 | 231 | 150 | 120 |
Heeler | 1*1/0AWG+1*123.3 | 7*3.37 | 4460 | 19*1.89 | 1.52 | 372 | 205 | 160 |
